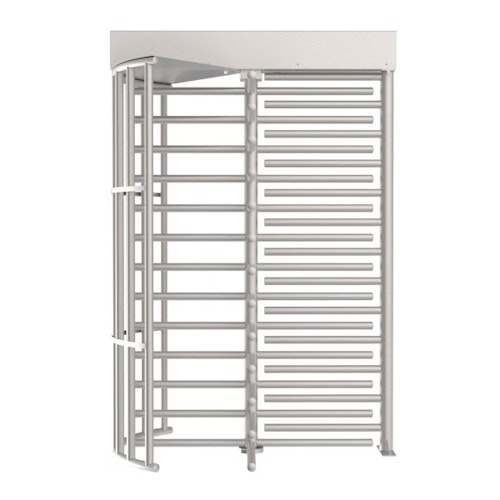

The FMST four arm full height turnstile offers unmatched security and control. The additional fourth arm provides a more secure passageway for enhanced tailgating control. Details matter, especially when manufacturing a four arm full height turnstile designed to stand the test of time. Unlike competitive models that use individual components that must be bolted together during installation, the integral sections of the FMST are fully welded, creating a solid, secure, and structurally sound installed product.
Common Applications:
- Perimeter control and fence line security
- Time and attendance integration
- Employee and visitor access control
- Unmanned point of entry
- Single-direction control and/or one-way exiting
- Inside and outside locations
You're trying to add a turnstile, but your comparison cart currently contains turnstiles. Different kinds of turnstiles are unable to be compared - proceeding will clear your comparison cart. Would you like to proceed?
For help comparing different types of turnstiles please contact us.
Related Videos
Key Features
- Four arm rotating section reduces the passage area for enhanced tailgating control
- Welded steel construction with no exposed bolts or fasteners
- Stainless steel top channel cover provided; regardless of finish
- High-quality sealed and covered bearings
- Splined connection between the rotating section and top channel assembly — provides a precision fit that minimizes play
- Helps reduce staffing requirements
- Full featured turnstile controller protects against electrical surges and is coated to enhance weatherization protection
- Suitable for outdoor environments
- Dozens of options and several finishes available
- Highly reliable; provides long-term continuous use
Most Versatile and Used Maximum Security Full Height Turnstile in the USA
Integrates with Any Access Control System
Made in the USA
Height: 91.5 inches
Width: 62.3 inches
Depth: 54 inches
Passage Width: 27 inches
Height: 91.5 inches
Width: 62.3 inches
Depth: 54 inches
Passage Width: 27 inches
Power Supply: Transformer 110 or 240 VAC, 50-60 Hz
Peak Consumption: 65 W
Operational Voltage: 12 VDC
Inputs
1 – Counter Clockwise Activation
1 – Clockwise Activation
1 – Fire Alarm System Connection Counter Clockwise Activation
1 – Fire Alarm System Connection
Clockwise Activation
Outputs
1 – Counting Output. Provides feedback to the access control system that a turnstile rotation has taken place.
Proximity and biometric reader integration
Backup battery
Credential status notification lights
Turnstile open / closed status lights
Enhanced environmental protection for severe environments
Padded heel / arm guards
Material: Powder-Coated over Steel/Galvanized/ Powder-Coated over Galvanized/Stainless Steel/Powder-Coated Over Stainless Steel
Colors: None / Standard Colors / Custom Colors
Security Level: High
ADA Compliant: No
Egress Restrictive: Yes
Operation: Manual / Electric / Motorized
Mounting Type: Direct
Powder-Coated – Indoor only locations
Galvanized – Indoor/outdoor locations
Powder-Coated Over Galvanized – Indoor/outdoor locations
Stainless Steel – Indoor/outdoor locations
Powder-Coated Over Stainless Steel – Indoor/outdoor locations
Colors Available for Galvanized:
Black OGF
Moss Green OGF
FED STD Haze Grey OGF
Haze Grey OGF
Chrome OGF
Light Ivory OGF
White OGF
Colors Available for Steel and Stainless Steel:
Signal White
Yellow Green
Mint Green
Zinc Yellow
Sky Blue
Capri Blue
Papyrus White
Traffic Grey
Signal Black High Gloss
Bengal Silver
Solar Flat Black Matte
Wrinkle Black
Black Semigloss
Standard Manufacturer Warranty: 12 Months
Avant-Garde Extended Warranty: Up to 60 Months
Eligible for Black Label Protection Plan
