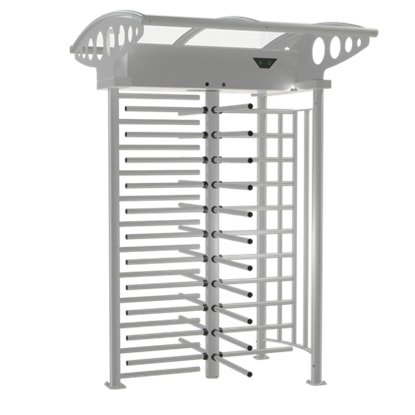

Gunnebo RotaSec Single Lane 90EV Full Height Turnstile

Full-height turnstile for external installation hand-operated electromechanical head, silent, and smooth rotation.

Innovative as flexible concept design. Aesthetic and robust design available with three (120°) or four (90°) rotor elements, delivered fully assembled or in a kit form. The range includes both the BA (basic) frame and the EV (evolution) full side frame versions in painted or stainless steel finish, alongside customization and options.





Common Applications:

  • Production Facilities
  • Storage Facilities
  • Construction Sites
  • Stadiums
  • Ports & Harbors
  • Government Buildings
  • Embassies
There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Fraud detection through proven algorithm
  • Leave aisle timeout
  • ITC (optional)
  • Anti-crawling barrier
  • Anti-pass back barrier



  • Anti-reverse rotation during transit
  • Self-centering to reset position
  • Action lock preventing two passages at one time
  • Manually operated arms
  • Anti-heel safety rubber — for Interlocking 90° version
  • Voltage-free contact input for fire alarm fail state
  • Anti-pinching design construction
  • Fail-safe (default), i.e. rotor freely rotates in power off scenario (fail-lock available on request)
  • Logic voltage 24 VAC
Group 126

High Security

Group 126

Prevent Queues

Group 73

Weather-Proof

Dimensions
Options
Finishes/Colors
Additional Details

Height: 94.21 inches

Width: 45.50 inches

Depth: 65.11 inches

Passage Width: 21.53 inches

Alternative finishes and materials card reader integration

Fully assembled or kit form remote control systems

Pictogram smooth and silent damping mechanism

Damped head mechanism Improper Transit Control (ITC)

Canopy (aluminum frame) heating kit -10°C

Down light base plate

Status light

Mounting Type: Direct

Finishes: Stainless Steel

Colors: Grey RAL 7004

Power Supply: 120 VAC / 50 Hz

Standard Manufacturer Warranty: 24 Months

Height: 94.21 inches

Width: 45.50 inches

Depth: 65.11 inches

Passage Width: 21.53 inches

Alternative finishes and materials card reader integration

Fully assembled or kit form remote control systems

Pictogram smooth and silent damping mechanism

Damped head mechanism Improper Transit Control (ITC)

Canopy (aluminum frame) heating kit -10°C

Down light base plate

Status light

Mounting Type: Direct

Finishes: Stainless Steel

Colors: Grey RAL 7004

Power Supply: 120 VAC / 50 Hz

Standard Manufacturer Warranty: 24 Months
