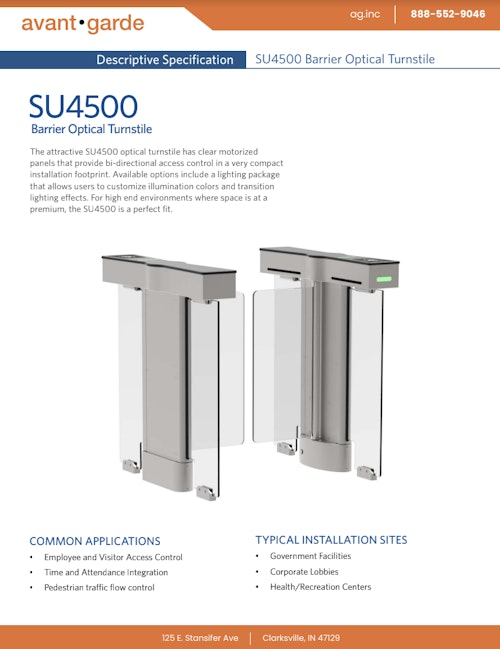

Alvarado SU4500 Swinging Barrier Optical Turnstile

The SU4500 swinging barrier optical turnstile has a compact design, which makes it a great option for facilities requiring secured access in areas where space is limited. The SU4500 comes in a variety of finish options, offering a visually appealing, durable, and dependable turnstile. The SU4500 is a stunning combination of security, safety, and aesthetics in a form-fitting installation footprint.

Compact cabinetry combined with the liberal use of crystal-clear materials provides a modern look that accentuates installation areas. The attractive look of the SU4500 can be further enhanced through an optional lighting package, which allows users to illuminate the side panels (and the top and end lights, if desired) in any RGB color and create unique transition effects. The provided configuration software allows users to change lighting colors and transitions.





Common Applications:

  • Time and attendance integration
  • Employee and visitor access control
  • Single-direction control and/or one-way exiting
There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Compact 38″ cabinet length
  • Optional edge-lit LED illumination with user-programmable transition effects
  • Accepts all types of credentials and biometric readers
  • Cabinet and lid options to blend with any environment
  • Add center cabinets to create multiple lane configurations
  • Integrates into a new or existing access control system
  • Modern design blends with any lobby
  • Slim cabinets allow optical turnstile use in compact spaces
  • Crystal clear swinging and fixed side panels
  • Cabinet finish and lid color options to blend with any environment
  • Custom etching and illumination options
  • An optional floor-saver platform eliminates the need for anchoring and trenching through the floor
Group 126

Made in the USA

Group 126

Transparent Panels Look Great and Increase Visibility

Group 73

Visual Graphics Provide Guidance to Users

Dimensions
Power
Inputs/Outputs
Options
Warranty
Additional Details
Height: 40.9 Inches

Width: 41.6 Inches

Depth: 38 Inches

Passage Width: 28 and 36 Inches

Power Supply: 10-120 VAC, 60 Hz or 220-240 VAC, 50 Hz (optional)

Peak Consumption: 65W

Operating: 40W

Idle: 20W

Operational Voltage: Primary power is stepped down and rectified for low voltage 24 VDC, 12 VDC, and 5 VDC

Inputs

1- Common Input Signal Ground

1- Valid Entry Card

1- Valid Card Exit

1- Free Passage Entry

1- No Passage Mode Entry

1- No Passage Mode Exit

1- Free Passage Entry Mode

1- Free Passage Exit Mode

1- Single Override Entry

1- Single Override Exit

1- Visitor Mode for Free Passage in Entry or Exit Direction

1- Emergency Override

Outputs

1- Authorized Passage Entry

1- Authorized Passage Exit

1- Unauthorized Passage Entry

1- Unauthorized Passage Exit

1- Unauthorized Presence Entry

1- Unauthorized Presence Exit

1- Blocked Sensor

1-Free Passage Exit

1- Door Held Open

1- Barrier Broken Away

Side panel lighting package that allows customizable illumination in any RGB color

Alternate lid colors and materials

Powder-coated or plated cabinets

Custom etching on panels

Automatic barrier opening on loss of power

GateKeeper control and monitoring software

Floor-saver platform

Standard Manufacturer Warranty: 18 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan

Finishes:

Stainless Steel

Powder-Coated

Colors:

Our turnstile cabinets can be powder =-coated in a variety of colors to complement any interior environment

Mounting Type: Direct

Height: 40.9 Inches

Width: 41.6 Inches

Depth: 38 Inches

Passage Width: 28 and 36 Inches

Power Supply: 10-120 VAC, 60 Hz or 220-240 VAC, 50 Hz (optional)

Peak Consumption: 65W

Operating: 40W

Idle: 20W

Operational Voltage: Primary power is stepped down and rectified for low voltage 24 VDC, 12 VDC, and 5 VDC

Inputs

1- Common Input Signal Ground

1- Valid Entry Card

1- Valid Card Exit

1- Free Passage Entry

1- No Passage Mode Entry

1- No Passage Mode Exit

1- Free Passage Entry Mode

1- Free Passage Exit Mode

1- Single Override Entry

1- Single Override Exit

1- Visitor Mode for Free Passage in Entry or Exit Direction

1- Emergency Override

Outputs

1- Authorized Passage Entry

1- Authorized Passage Exit

1- Unauthorized Passage Entry

1- Unauthorized Passage Exit

1- Unauthorized Presence Entry

1- Unauthorized Presence Exit

1- Blocked Sensor

1-Free Passage Exit

1- Door Held Open

1- Barrier Broken Away

Side panel lighting package that allows customizable illumination in any RGB color

Alternate lid colors and materials

Powder-coated or plated cabinets

Custom etching on panels

Automatic barrier opening on loss of power

GateKeeper control and monitoring software

Floor-saver platform

Standard Manufacturer Warranty: 18 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan

Finishes:

Stainless Steel

Powder-Coated

Colors:

Our turnstile cabinets can be powder =-coated in a variety of colors to complement any interior environment

Mounting Type: Direct
