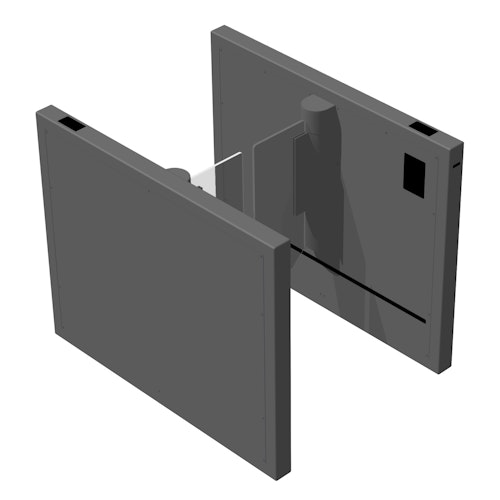

Automatic Systems SlimLite 960

The SlimLite optical barrier speedgate is designed to meet the needs of value-oriented projects. The addition of SlimLite to Automatic Systems pedestrian product offering provides a choice for the security designer who wants the SlimLane pedigree in a slightly “lighter,” more standardized version.





Common Applications:

  • Banks and insurance companies
  • Government buildings and institutions
  • Office buildings
  • Head offices and administrative sites
  • Educational institutions
There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Key Features

  • Self-supporting steel frame
  • Black powder-coated steel panels
  • Clear, 3/8 in (10 mm) thick mobile glass obstacles
  • Electromechanical drive unit
  • AS1190 logic control board
  • Transfer of information through an Ethernet interface, USB, and dry contacts
  • Function pictograms indicating gate and passage status to the user
  • Proprietary DIRAS detection system
Dimensions
Power
Options
Finishes
Warranty

Height: 39 inches

Width:  33.5 inches

Depth: 48 inches

Passage Width: 23 inches

Barrier Height: 35.44, 47, 59, 67 inches

Power Supply: 15A @ 24 VDC

Peak Consumption: N/A

Operational Voltage: 24 VDC

  1. 120 VAC power supply
  2. SECURI-SAFE operating mode: electromechanical locking of the obstacles in case of forced entry attempt in any passage direction
  3. Optional glass heights: 47” [1194mm], 59’’= [1499mm] and 67’’ [1702mm]
  4. Standard side reader integration within housing
  5. Top barcode reader integration*
  6. Customized logo on mobile obstacles
  7. Monitoring panel (Smart & Slim / Smart Touch, Manual CP)
  8. Connectivity kit for Ethernet connection of one or more lanes to the network
  9. Customized color
  10. Raised base
  11. Ramp
  12. Custom glass width up to 36’’

Mounting Type: Direct

Finishes:

Powder-Coated



Warranty: 24 Months

Height: 39 inches

Width:  33.5 inches

Depth: 48 inches

Passage Width: 23 inches

Barrier Height: 35.44, 47, 59, 67 inches

Power Supply: 15A @ 24 VDC

Peak Consumption: N/A

Operational Voltage: 24 VDC

  1. 120 VAC power supply
  2. SECURI-SAFE operating mode: electromechanical locking of the obstacles in case of forced entry attempt in any passage direction
  3. Optional glass heights: 47” [1194mm], 59’’= [1499mm] and 67’’ [1702mm]
  4. Standard side reader integration within housing
  5. Top barcode reader integration*
  6. Customized logo on mobile obstacles
  7. Monitoring panel (Smart & Slim / Smart Touch, Manual CP)
  8. Connectivity kit for Ethernet connection of one or more lanes to the network
  9. Customized color
  10. Raised base
  11. Ramp
  12. Custom glass width up to 36’’

Mounting Type: Direct

Finishes:

Powder-Coated



Warranty: 24 Months
