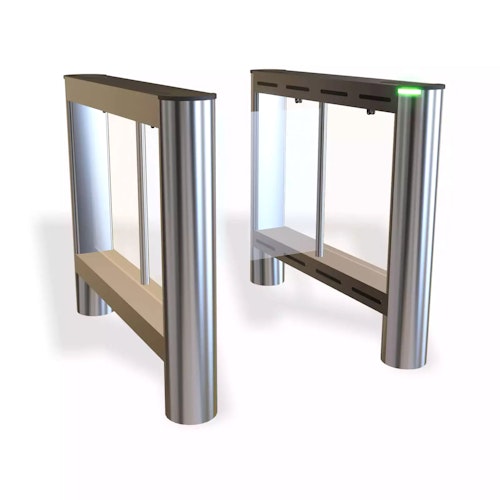

Smarter Security Fastlane Glassgate 150

Fastlane Glassgate 150 is a compact optical turnstile with sleek pedestal-height barriers. It streamlines advanced optical technology with bidirectional swinging glass gates for rapid throughput and intelligent tailgate detection. With Fastlane, security has never looked so inviting.

Fastlane turnstiles have an advanced architecture based on distributed intelligence. An infrared beam matrix engineered with multiple microprocessors monitors pedestrian movement with pinpoint accuracy, detecting tailgaters as close as 1/4” apart. Inherently more secure, this technology also enables the fastest entry and minimizes false alarms.





Common Applications:

  • Universities
  • Fitness centers
  • Business lobbies
  • Event venues
  • Government buildings
  • Public transportation
  • Hospitals



Do you need installation?

Avant-Garde offers installation on all our products. Our teams of salespeople, technicians, project managers and custom drawings make any project easy by coordinating our products’ purchasing, delivery, installation, and integration into your onsite systems. Avant-Garde also provides onsite evaluations to help you decide what product best suits your needs and budget. Our leading extended warranties include parts and labor making maintenance and repair simple and easy.

Stick with the pros. Call us today to begin the process of securing your facility.

There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Close quickly behind the authorized person to deter tailgaters
  • Stays open for immediate additional authorized users passing in either direction
  • Glassgate will automatically sound a local alarm if someone enters without authorization
  • Efforts to push past the glass barrier will sound a second, louder alarm
  • A secondary relay can trigger CCTV, lock doors, or control elevators



  • Detects and deters tailgaters in very close proximity
  • Class-leading infrared detection systems
  • Differentiates body mass from smaller objects
  • Provides instant feedback on traffic flow and incidents
  • Barriers open flush with the pedestal, minimizing the footprint
  • Fewer failures mean lower repair costs
  • Online diagnostics and support packages
  • High processing speed reduces traffic build-up
  • Door-like motion ensures quick user acceptance
  • Glass barriers provide secure and welcome entry
Group 126

High Security

Group 126

Superior Design

Group 73

Field-Proven Reliability

Dimensions
Power
Inputs/Outputs
Options
Additional Details
Warranty
Height: 38 Inches

Width: 38.7 Inches

Depth: 45.2 Inches

Passage Width: 26 and 36 Inches

Barrier Height: 35.3 Inches

Power: 115 V AC, 60 Hz or 230 V AC, 50 Hz

Peak Consumption: 60 W

Operational voltage: 24 VDC

Inputs

Require voltage-free switching (current sense 1 mA typical)

Entry request (normally open closing for < 1 second)

Exit request (normally open closing for < 1 second)

Visitor access in & out (normally open momentary push button)

Fire panel integration- Optocoupled Input 12-24 Vdc @ 25mA nominal

Outputs

Voltage-free relay contacts rated 0.5A, 28 V DC for output to system

Lane-entered (NC)

Lane-exited exit (NC)

Alarm 1 (NC, opening for 1s)

Alarm 2 (NC, opening for 1s)

Fastlane Technical Services

Fastlane Floor Protector

Fastlane Infill System

Multiple desktop controls (IP or analog)

FastScan™

Pressure sensor tops

Multiple reader mounting options

Icon status display

Mounting Type: Direct

Finishes: Stainless Steel

Colors: Our turnstile cabinets can be powder-coated in a variety of colors to complement any interior environment

Standard Manufacturer Warranty: 12 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan



Height: 38 Inches

Width: 38.7 Inches

Depth: 45.2 Inches

Passage Width: 26 and 36 Inches

Barrier Height: 35.3 Inches

Power: 115 V AC, 60 Hz or 230 V AC, 50 Hz

Peak Consumption: 60 W

Operational voltage: 24 VDC

Inputs

Require voltage-free switching (current sense 1 mA typical)

Entry request (normally open closing for < 1 second)

Exit request (normally open closing for < 1 second)

Visitor access in & out (normally open momentary push button)

Fire panel integration- Optocoupled Input 12-24 Vdc @ 25mA nominal

Outputs

Voltage-free relay contacts rated 0.5A, 28 V DC for output to system

Lane-entered (NC)

Lane-exited exit (NC)

Alarm 1 (NC, opening for 1s)

Alarm 2 (NC, opening for 1s)

Fastlane Technical Services

Fastlane Floor Protector

Fastlane Infill System

Multiple desktop controls (IP or analog)

FastScan™

Pressure sensor tops

Multiple reader mounting options

Icon status display

Mounting Type: Direct

Finishes: Stainless Steel

Colors: Our turnstile cabinets can be powder-coated in a variety of colors to complement any interior environment

Standard Manufacturer Warranty: 12 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan
