Controlled Access 336 ADA Gate / 348 ADA Gate

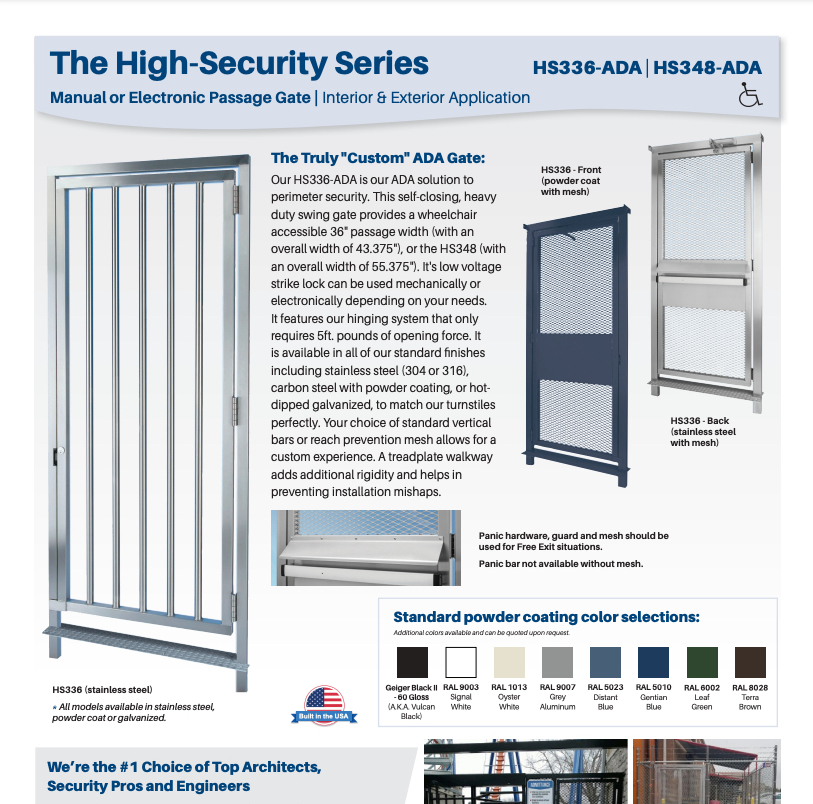

Our High-Security Series ADA Gates have been engineered to meet the most demanding security and control requirements. Paired with our HS400 Series Full Height Turnstiles, they provide ADA accommodation to any project. Crafted from tubular steel (for controlled, both direction units) or mesh with a push bar for free-exit projects, the HS336/HS348 ADA gates complete any access control job.

These units are available in your choice of galvanized, powder-coated carbon steel, or stainless steel (304) finishes to match your turnstile array. For added corrosion resistance, they are also available in powder coat over galvanized or 316 stainless steel.





Common Applications:

  • Ideal for controlling orderly flow of foot traffic in both indoor and outdoor settings
  • Matching gate to our High-Security Full-Height Single and Tandem Turnstiles
There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Reach-prevention mesh
  • Panic bar with mesh for free exit scenarios
  • Magnetic lock (replaces strike)
  • Motorized gate opener (requires 110 VAC and adds 3″ to overall height of gate)
  • Push buttons (wired or wireless)
  • Variable passage widths (up to 40″); or you can choose our 48″ option
Group 126

Built with Aesthetics in Mind

Group 126

Heavy Gauge Materials

Group 73

Secure Operation

Dimensions
Power
Options
Colors
Additional Details

Height: 91 inches

Width: 55.38 inches

Depth: Not Available

Passage Width: 36 inches, 48 inches

Avant Garde Controlled Access Hs336388 Ada Pedestrian Gate Turnstile Image Gallery 8

Power Supply: UL Listed Electronic Strike

Input Voltage: 24 VDC; Input Current: 170 mA

Power Consumption: Not Available

Operational Voltage: Not Available

Panic bar (-ms only)

Magnetic lock (replaces strike)

Motorized gate opener for interior applications only (requires 110VAC, adds 3” to overall height of gate)

Push buttons (wired or wireless)

Additional options available upon request

Mounting Type: Direct

Gelger Black II - 60 Gloss (A.K.A Vulcan Black)

RAL 9003 Signal White

RAL 1013 Oyster White

RAL 9007 Grey Aluminum

RAL 5023 Distant Blue

RAL 5010 Gentian Blue

RAL 6002 Leaf Green

RAL 8028 Terra Brown

Finishes:

Stainless Steel

Powder-Coated

Galvanized

Powder-Coated Over Stainless Steel

Powder-Coated Over Galvanized

Warranty: 12 Months

Height: 91 inches

Width: 55.38 inches

Depth: Not Available

Passage Width: 36 inches, 48 inches

Avant Garde Controlled Access Hs336388 Ada Pedestrian Gate Turnstile Image Gallery 8

Power Supply: UL Listed Electronic Strike

Input Voltage: 24 VDC; Input Current: 170 mA

Power Consumption: Not Available

Operational Voltage: Not Available

Panic bar (-ms only)

Magnetic lock (replaces strike)

Motorized gate opener for interior applications only (requires 110VAC, adds 3” to overall height of gate)

Push buttons (wired or wireless)

Additional options available upon request

Mounting Type: Direct

Gelger Black II - 60 Gloss (A.K.A Vulcan Black)

RAL 9003 Signal White

RAL 1013 Oyster White

RAL 9007 Grey Aluminum

RAL 5023 Distant Blue

RAL 5010 Gentian Blue

RAL 6002 Leaf Green

RAL 8028 Terra Brown

Finishes:

Stainless Steel

Powder-Coated

Galvanized

Powder-Coated Over Stainless Steel

Powder-Coated Over Galvanized

Warranty: 12 Months
