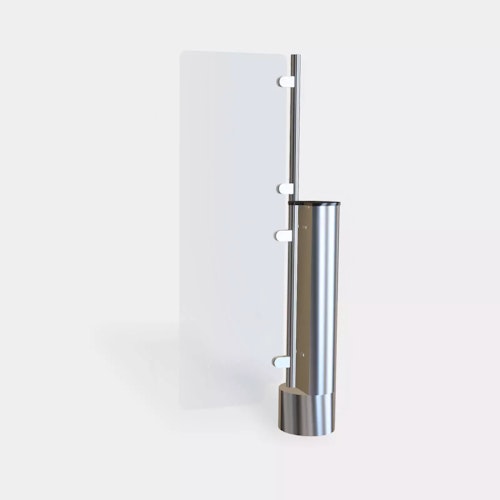

Smarter Security Fastlane Passgate 300

A new take on a classic, the Passgate 300 unit is a single-pedestal, single-barrier gate; available in multiple heights and widths to suit a wide range of applications. Utilizing the proven GG300 engine, the new Passgate is designed as an accessory for the hugely successful Fastlane Turnstile range — conceived for use as an occasional lane for deliveries and oversized objects that may not fit through our standard range.





Common Applications:

  • High-rise building lobbies
  • Corporate offices
  • Financial institutions
  • Government facilities
There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Advanced technology for superior entry control
  • Barriers are a visual and physical deterrent
  • Intelligence virtually eliminates false alarms
  • Occasional gate for use with wheelchairs, groups, or deliveries
  • Refined, slim designs accentuate lobby
  • Glass barrier provides secure and welcome entry
  • Barrier opens flush with the pedestal, minimizing the footprint
  • Uptime and long lifetime improve bottom line
  • Fewer failures mean lower repair costs
  • Online diagnostics and support packages
Group 126

Superior Design

Group 126

High Security

Group 73

Field-Proven Reliability

Dimensions
Power
Inputs/Outputs
Options
Additional Details
Warranty

Height: 38, 47.2, 59.1, or 70.9 inches

Width: 39.3, 27.56, or 23.62 inches

Depth: 9.4 inches

Passage Width: 39.3, 27.5, or 23.6 inches

Power Supply: 100-240 VAC, 50-60 Hz, 1500 mA

Peak Consumption: 60 W

Operational Voltage: 24 VDC

Inputs

Require voltage-free switching (current sense 1 mA typical)

Entry request (normally open closing for < 1 second)

Exit request (normally open closing for < 1 second)

Visitor access in and out (normally open momentary push button)

Fire panel integration — Opto-coupled

Input 12-24 VDC @ 25mA nominal



Outputs

Voltage-free relay contacts rated 0.5A, 28  VDC for output to system

Alarm 1 (NC, opening for 1s)

Fastlane technical services

Fastlane floor protector

Fastlane infill system

Fastlane remote control

Multiple desktop controls — IP or Analog

FastScan™

Locking barriers

Reader mounting post

Mounting Type: Direct

Finishes: Stainless Steel

Warranty: 12 Months

Standard Manufacturer Warranty: 12 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan



Height: 38, 47.2, 59.1, or 70.9 inches

Width: 39.3, 27.56, or 23.62 inches

Depth: 9.4 inches

Passage Width: 39.3, 27.5, or 23.6 inches

Power Supply: 100-240 VAC, 50-60 Hz, 1500 mA

Peak Consumption: 60 W

Operational Voltage: 24 VDC

Inputs

Require voltage-free switching (current sense 1 mA typical)

Entry request (normally open closing for < 1 second)

Exit request (normally open closing for < 1 second)

Visitor access in and out (normally open momentary push button)

Fire panel integration — Opto-coupled

Input 12-24 VDC @ 25mA nominal



Outputs

Voltage-free relay contacts rated 0.5A, 28  VDC for output to system

Alarm 1 (NC, opening for 1s)

Fastlane technical services

Fastlane floor protector

Fastlane infill system

Fastlane remote control

Multiple desktop controls — IP or Analog

FastScan™

Locking barriers

Reader mounting post

Mounting Type: Direct

Finishes: Stainless Steel

Warranty: 12 Months

Standard Manufacturer Warranty: 12 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan
