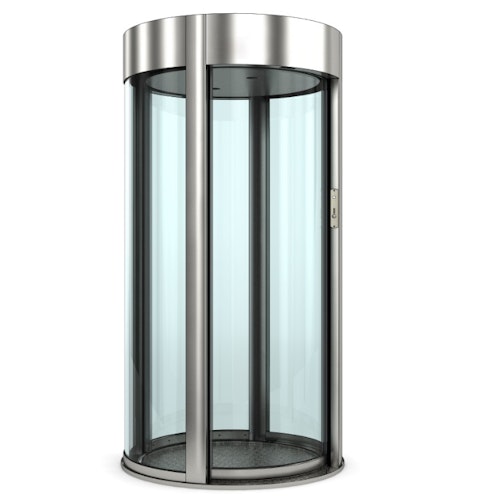

Automatic Systems ClearLock 636

The ClearLock booths are designed to provide high-security entrance control and management of pedestrian flow.

Based on more than 20 years of experience, the Clearlock 636 design is a robust structure that allows for easy integration into prestigious locations; such as office buildings, airports, laboratories, and sensitive sites. The high-security ClearLock 636 booth is equipped with two mobile obstacles, which provide a free passage width of 25 5/8 in [650 mm], and an external diameter of 45 1/4 in [1,150 mm].

The ClearLock 636 is available with a straight [180°] left / right angled [90°] passage.





Common Applications:

  • Data centers
  • Government facilities
  • Administrative buildings



Do you need installation?

Avant-Garde offers installation on all our products. Our teams of salespeople, technicians, project managers and custom drawings make any project easy by coordinating our products’ purchasing, delivery, installation, and integration into your onsite systems. Avant-Garde also provides onsite evaluations to help you decide what product best suits your needs and budget. Our leading extended warranties include parts and labor making maintenance and repair simple and easy.

Stick with the pros. Call us today to begin the process of securing your facility.

There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Single-user detection with time of flight or weight system sensor
  • Indoor or façade installation
  • Safe, simple, and effective equipment for demanding, prolonged use
  • Long-term investment — based on exceptional durability
  • Reduced maintenance and security costs
Group 126

Bullet, Vandalism, and Theft-Resistant

Group 126

Elegant Design

Group 73

Compact Footprint

Dimensions
Power
Options
Colors
Additional Details
Warranty

Height: 92 inches

Width: 45.3 inches

Depth: 45.3 inches

Passage Width: 27.5 inches

Power Supply: 120 VAC single-phase, 60 Hz, 10A + ground

Peak Consumption: 200 W

Operational Voltage: Not Available

Entry and / or exit-opening sensor

Left / right angle 90° passage

Metal detector sensor in entry

Left object detection sensor (with a metal detector in entry)

Additional remote console for secondary security location

RS485 LAN converter for network consoles

BR3 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

BR4 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

Housing with non-standard RAL color paint or flat finish paint

Housing 304L Stainless Steel (brushed or mirror polish)

Internal column for readers and accessories

Tinted glass (mobile obstacles and curved side panels)

Frame for recessed installation

Special frame for built-in installation

Special support for installation on the technical floor

Mounting Type: Direct

RAL 9010 White

RAL 7035 Light Gray

RAL 9011 Black

RAL 8019 Dark Brown

Finishes: Stainless Steel

Standard Manufacturer Warranty: 24 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan



Height: 92 inches

Width: 45.3 inches

Depth: 45.3 inches

Passage Width: 27.5 inches

Power Supply: 120 VAC single-phase, 60 Hz, 10A + ground

Peak Consumption: 200 W

Operational Voltage: Not Available

Entry and / or exit-opening sensor

Left / right angle 90° passage

Metal detector sensor in entry

Left object detection sensor (with a metal detector in entry)

Additional remote console for secondary security location

RS485 LAN converter for network consoles

BR3 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

BR4 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

Housing with non-standard RAL color paint or flat finish paint

Housing 304L Stainless Steel (brushed or mirror polish)

Internal column for readers and accessories

Tinted glass (mobile obstacles and curved side panels)

Frame for recessed installation

Special frame for built-in installation

Special support for installation on the technical floor

Mounting Type: Direct

RAL 9010 White

RAL 7035 Light Gray

RAL 9011 Black

RAL 8019 Dark Brown

Finishes: Stainless Steel

Standard Manufacturer Warranty: 24 Months

Avant-Garde Extended Warranty: Up to 60 Months

Eligible for Black Label Protection Plan
