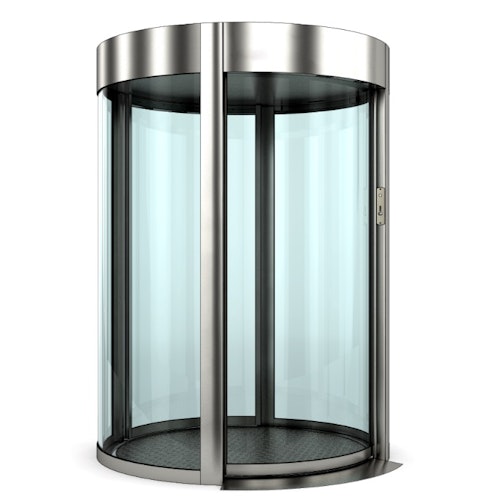

Automatic Systems ClearLock 637

The ClearLock booths are designed to provide high-security access control and management of pedestrian flow.

Based on more than 20 years of experience, the Clearlock 637 design is a robust structure that allows for easy integration into prestigious locations; such as office buildings, airports, laboratories, and sensitive sites.

The high-security ClearLock 637 booth is equipped with two mobile obstacles, which provide a free passage width of 33 7/16 in [850 mm], and an external diameter of 59 1/16 in [1500 mm].





Common Applications:

  • Data centers
  • Government facilities
  • Administrative buildings
There are already 4 turnstiles in the compare class. Please remove one to continue.
Built to Order

Product Features

  • Single-user detection with time of flight or weight system sensor
  • Indoor or façade installation
  • Safe, simple and effective equipment for demanding, prolonged use
  • Long-term investment — based on exceptional durability
  • Reduced maintenance and security costs
Group 126

Bullet, Vandalism, and Theft-Resistant

Group 126

Elegant Design

Group 73

Compact Footprint

Dimensions
Power
Options
Colors
Additional Details

Height: 92 inches

Width: 59.1 inches

Depth: 45.3 inches

Passage Width: 33.4 inches

Avant Garde Automatic Cl 637 Implementation Drawing Preview

Power Supply:  120 V single phase, 60 Hz, 10 A + Ground

Peak Consumption: 200 W

Operational Voltage: N/A

Entry and / or exit opening sensor

Metal detector device in entry

Left object detection device (with a metal detector in entry)

Internal column for readers and accessories

Additional remote console

Converter RS485 to LAN network consoles

BR3 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

BR4 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

Housing with non-standard RAL color paint or smooth finish paint

Housing 304L Stainless Steel (brushed or mirror polish)

Milky glass finish for obstacles

Frame for recessed installation

Special frame for built-in installation

Special support for installation on the technical floor

Mounting Type: Direct

RAL 9010 White

RAL 7035 Light Gray

RAL 9011 Black

RAL 8019 Dark Brown

Finishes: Stainless Steel

Warranty: 24 Months

Height: 92 inches

Width: 59.1 inches

Depth: 45.3 inches

Passage Width: 33.4 inches

Avant Garde Automatic Cl 637 Implementation Drawing Preview

Power Supply:  120 V single phase, 60 Hz, 10 A + Ground

Peak Consumption: 200 W

Operational Voltage: N/A

Entry and / or exit opening sensor

Metal detector device in entry

Left object detection device (with a metal detector in entry)

Internal column for readers and accessories

Additional remote console

Converter RS485 to LAN network consoles

BR3 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

BR4 P6B bullet & vandalism-resistant glass (mobile obstacles and curved side walls)

Housing with non-standard RAL color paint or smooth finish paint

Housing 304L Stainless Steel (brushed or mirror polish)

Milky glass finish for obstacles

Frame for recessed installation

Special frame for built-in installation

Special support for installation on the technical floor

Mounting Type: Direct

RAL 9010 White

RAL 7035 Light Gray

RAL 9011 Black

RAL 8019 Dark Brown

Finishes: Stainless Steel

Warranty: 24 Months
