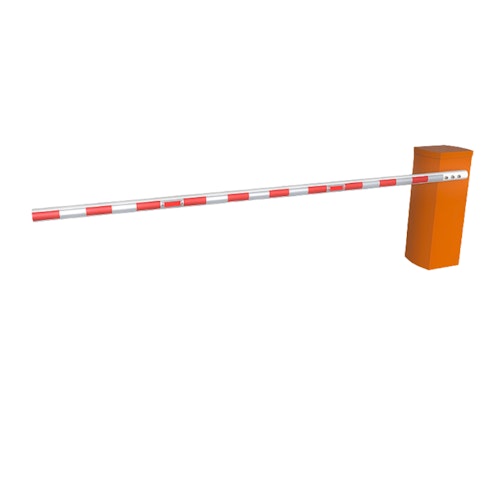

The BL 229 rising barrier is a universal gate recognized for its high performance and great reliability. The BL229 can be used in a wide range of applications: traffic management, parking areas, industrial sites… and even toll roads.
Common Applications:
Perimeter access (residential, commercial, industrial…)
You're trying to add a turnstile, but your comparison cart currently contains turnstiles. Different kinds of turnstiles are unable to be compared - proceeding will clear your comparison cart. Would you like to proceed?
For help comparing different types of turnstiles please contact us.
Key Fatures
- Automatic opening in case of power failure
- Vandalism Resistant
- Tip supports (electromagnetic, electronic locking, anti-vandalism...)
- Automatic lifting of the arm or locking of the arm (optional
- IP Capable for remote monitoring and control
- Push button boxes
- Transmitter/receiver remote control
- Lighting for arm or housing
- Traffic lights
- Customized colors
Easy Installation
Fast, Fluid Movement
Adapted for Intensive Use
Height: 41.5”
Width: 16 ⅛”
Depth: 13 9/16”
Passage width: up to 19’- 7”
Height: 41.5”
Width: 16 ⅛”
Depth: 13 9/16”
Passage width: up to 19’- 7”
Power Supply: 120VAC/60 hZ
Peak Consumption: 335W
Articulated round arm. (4)
Breakaway + breakaway detection.(4)
Carbon Protecta® arm - Lg. 10' [3 m]
Safety edge profile. (4)
Automatic opening of the arm to 45° in case of power failure.
Height adjustable tip support.
Electromagnetic tip support..(4)
Folding tip support. (4)
Position detection by analog sensor for enhanced performance.
Push-button box.
Key switch on the housing.
Remote control
Detection loop.
Presence detector for inductive loops
Photocells to open, close or automatically stop/reopen the barrier arm.
Traffic lights mounted on the operator cabinet.
Traffic lights mounted on a standalone post.
Audible alarm (internal mounting) during the barrier closing movement.
Siren detector to open the gate when police, ambulance, or fire truck are in an emergency.
STOP sign - 11 13/16'' [300 mm] diameter. (4)
Anti-corrosion raised base. Power supply 220V - 50/60Hz.
Thermostatic heater for operation down to -31°F [-35°C].
Cooling fan on door.
Non-standard RAL colors.
SmartTouch monitoring and control panel.
Photocell support post (car or truck height).
TOF (Time Of Flight) sensor LZR-H100 to open, close or automatically stop/reopen the barrier arm.
AS1623 input/output extension board.
Arm lights (Flashing lights (red) when closed).
Mounting Type: Direct
Colors: Custom colors available
Finishes: Aluminum
Standard Manufactures Warranty: 24 Months
Avant-Garde Extended Warranty: Up to 60 Months
Eligible for Black Label Protection
