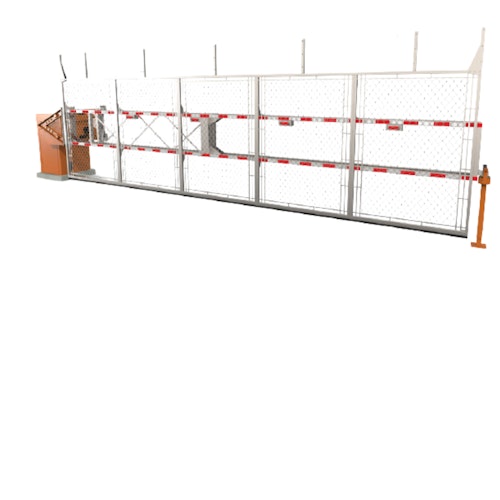

The newly redesigned BLG 77 is now ETL-listed to UL325 specifications to ensure the user's safety. This reinforced rising fenced barrier offers a strong alternative to a sliding gate. The BLG77 gate is one of the fastest full-height automatic gates on the market. Able to open 20′ in 7 seconds!
Recognized for its reliability and low cost of ownership, the BLG77 is a great investment for the long-term access control of your perimeter.
Common Applications:
- Perimeter Access (Commercial, Industrial, Ports)
You're trying to add a turnstile, but your comparison cart currently contains turnstiles. Different kinds of turnstiles are unable to be compared - proceeding will clear your comparison cart. Would you like to proceed?
For help comparing different types of turnstiles please contact us.
Height: 47.75 Inches
Width: 30 Inches
Depth: 30 Inches
Passage width: 20 Feet 20 Inches
Height: 47.75 Inches
Width: 30 Inches
Depth: 30 Inches
Passage width: 20 Feet 20 Inches
Power Supply: 240VAC/60Hz
Peak Consumption: 659W-1459W
Standard adjustable tip support
A fence support leg install on the fence
STOP sign with a diameter of 300 mm
Traffic lights mounted on a standalone post
Push-button box
Key switch
Remote transmitter/receiver
Detection inductive loop
Presence detector for detection inductive loops
Photoelectric cell to open, close, or automatically stop the barrier arm
Photocell support post
AS10'19 board to enable connections with different third traffic signs
Thermostatic heating for the operation to -'19°F HS°C] Red light on fence
Raised base
Other RAL colors are available
Master/slave configuration with interlock systems
Power supply 208V 3 phases
120V-15A power outlet
Mounting Type: Direct
Colors:
Custom colors available
Finish:
Powdercoat
Standard Manufacturer Warranty: 24 Months
Avant-Garde Extended Warranty: Up to 60 Months
Eligible for Black Label Protection Plan
